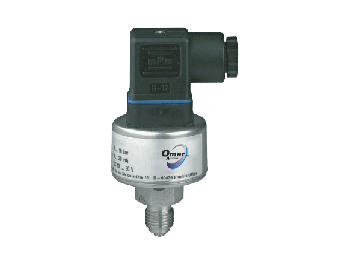

   Home> Products> Omar Pressure transducer

Pressure range : 0-16 bar
                                to 0-1000 bar
Output signal : 4-20 mA, 1-5 VDC,
                           0-10 VDC
Accuracy : ± 1 % of F.S.
Medium Temp. : -40 - 100 °C
Wetted parts : Stainless steel
Response time :   5 ms

PDF Download   |   Clicks:10158  |  Print  |  Back


Product Detail

Corrosion resistant stainless steel design        High peak pressure resistance
High alternating load resistance        High long-term stability
For dynamic and static measurements

Pressure sensors OEM are top of the range pressure sensors. With their technical qualities and the attractive price level, they are suitable for OEM applications with mean and high quantities. Measuring ranges from 0-1 bar up to 0-1000 bar, graded in accordance with EN, offer a wide range of possible applications. The overload limit up to 10 bar is 3.5x, between 16 and 600 bar twice and for 1000 bar 1.5x of the rated pressure.
