☆ Direct mounting on pressure transmitters ☆ No additional wiring
☆ Push button programmable
The DM430 plug in display unit is a universal local display suitable for use with
Gems Sensors two wire pressure transmitters with a DIN 43650 (large DIN) electrical
connection.
The display is powered by the existing 2 wire loop so no additional power supply
is necessary.
Fully programmable the DM430 has a measuring range of -1999 to +9999 and can be
easily set to display in Engineering unit*|*s, %, current, etc, by means of 2 push
buttons, accessible on the front panel the unit can be password protected.
The programmed parameters are stored in an EEPROM so they are not lost after
power failure, with over or under range displays on the indicator in text format.

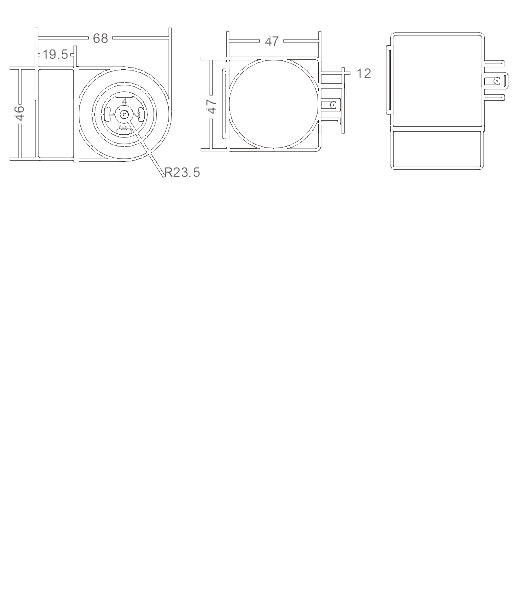

Dimensions (in mm)
|
