☆ 1% Error Band over -20°C to +80°C ☆ Ranges from 30mbar to 20bar ☆ 24V a.c/d.c. input option ☆ Line pressure 34bar

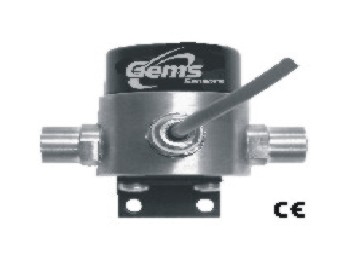

This series of miniature differential pressure transducers have a piezo-resistive sensor and a unique conductive seal that eliminates internal wire bonding thus enhancing reliability. Zero and full-scale adjustments are provided under the top cover. They are ideal for use in areas requiring exact pressure measurement, low hysteresis and long-term stability. For all applications where air, oil or water is to be monitored. The unit is supplied with mounting bracket and integral 1 metre cable.

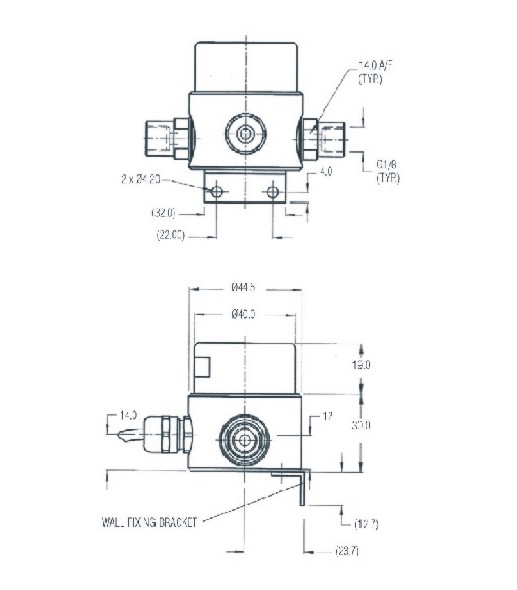

Dimensions (in mm)
