☆ Easily scaled in any engineering units from -19999 to 99999
☆ Large 18 mm (.71”) high red orgreen display
☆ Front panel MIN, MAX and alarm reset functions
☆ High or low alarms
☆ Process meters for amplified transducers
☆ Strain gauge meters for millivolt transducers

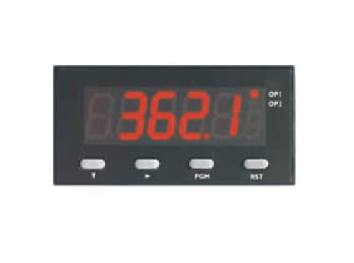

The DM28 meter line is easily programmed to read out in any engineering units (psi,
bar, Kg/cm2) and can be retro fitted in the field with plug in boards. Units can be
scaled by applying known loads to the sensors or purely by software keystrokes
without requiring any electronic instrumentation. Scaling the meter using up to 10
points can compensate for non-linear signals and profiling curved tanks in level
applications. The display colour (red or green), latching or non-latching alarms and
the optional analog outputs are all programmable. The meter also features a help
character that indicates max, min and normal operation, it also gives additional help
when programming. The DM28 meter line is available in 5 different models, the
specifications below are for the process and strain gauge meter lines only. |
